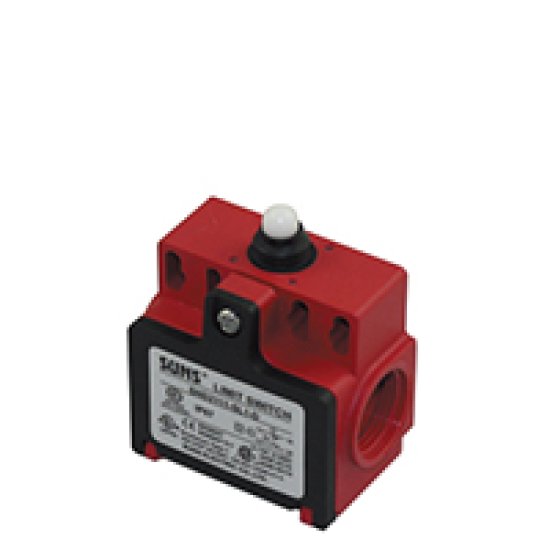

Limit switch with button, plastic housing

　Features：
　*Glass fiber reinforced plastic body
*Easily interchangeable contact block
*Galvanically separated contacts
*Screw terminals with self-lifting clamps for easy wiring
*Positive Opening of NC contacts
*4 x 90o actuator positions
*Cable entry available: M20, PG13.5 and 1/2"NPT
*Conform to EN 50047 standard

Operating Speed: 0.05mm-2m/sec

Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min

Insulation Resistance:　>100MΩ @ 500V DC

Contact Resistance:　　<25mΩ

Rated Current/Voltage:　10A/600V AC (EN60947-5-1)

Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300

Dielectric Strength:　1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground

Service Life:　　　 Mechanically 10,000,000, Electrically 500,000

Operating Temperature:　-25~80℃(-13~176°F) without formation of ice

Humidity:　　　　 <95%RH

Weight：　　　 59~109g

Degree of protection:　 IP67
