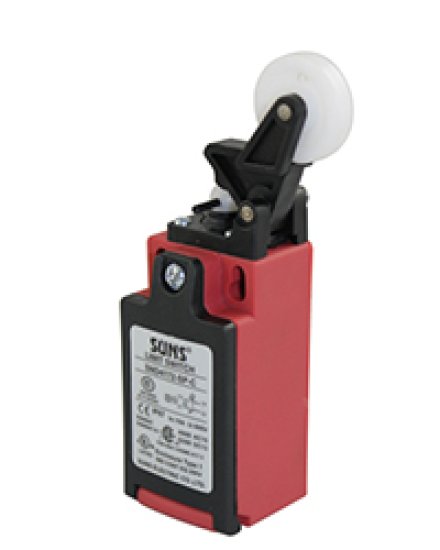

Features：
* Glass fiber reinforced plastic body
* Conform to EN 60947-5-1, IEC 60947-5-1, UL508,
* ASME A17.1/5, EN 81-1, EN 81-2 Standards
* High sensibility and low actuating force
*Galvanically separated contacts
*Positive Opening of NC contacts
*Conform to EN 50047 standard
Specifications:
Operating Frequency: 0.05mm-0.5m/sec
＞ Rated Current/Voltage: 10A/600V AC (EN60947-5-1) AC15 A600 / DC13 Q300
Inrush Current Complies with IEC947-5-1: AC15/DC13
Service Life: Mechanically 10 millions (operations)
Operating Temperature: -25~+50oC (-13~122oF) with no icing
Actuating force 6 N (+/- 2 N)
Actuating Distance < 0.5mm
Contact Opening 2 x 2 mm
Degree of Protection: IP67
| Mærke | SUNS |
|---|---|
| Leverandør | SUNS Electric Co.,Ltd. |
